Windbreak
Lost? Sitemap
Windbreaks

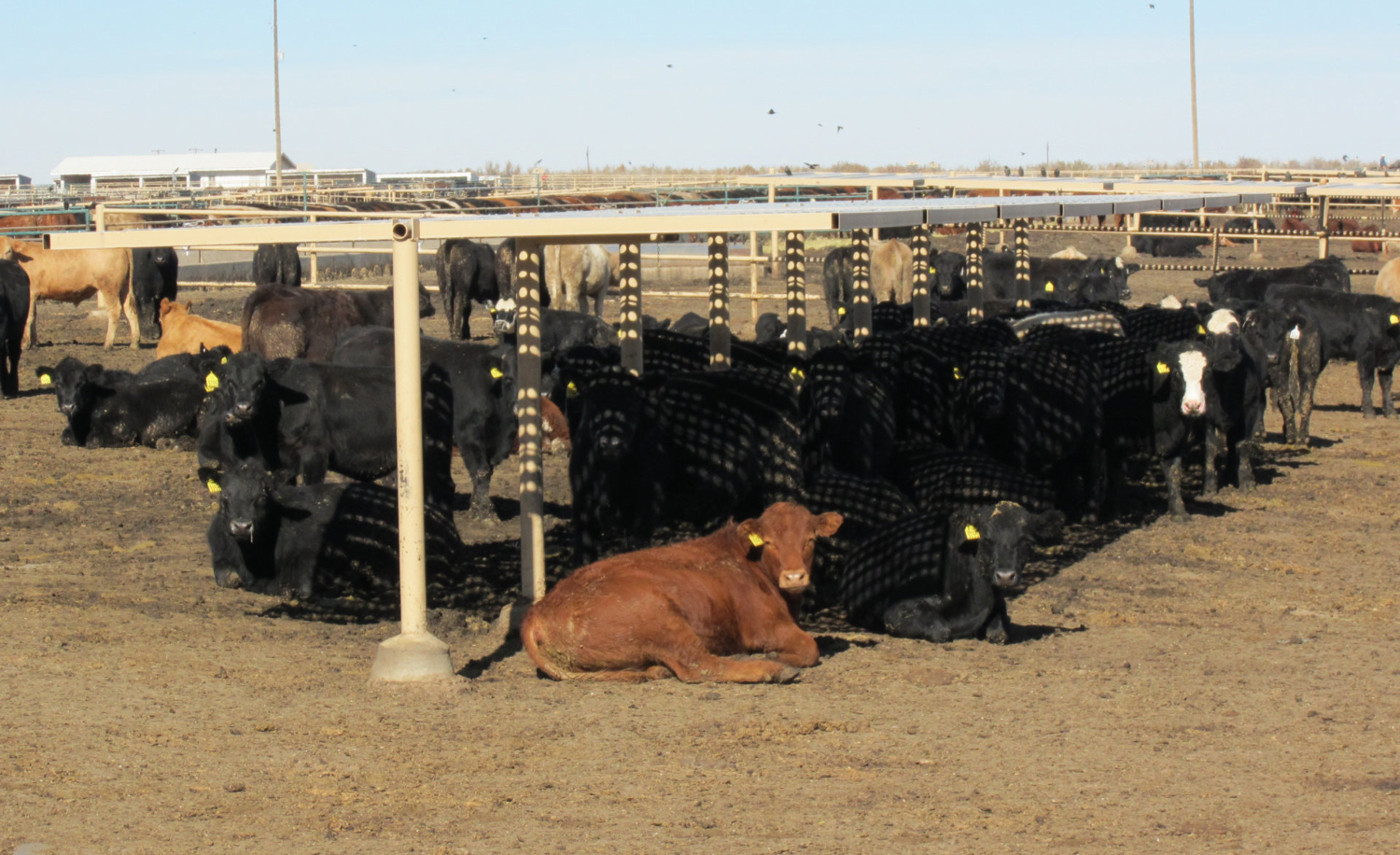

Windbreak for Shade
From Windbreak...
- In Just 5 Minutes - One Person - No Tools - No Bolts
To Shade!

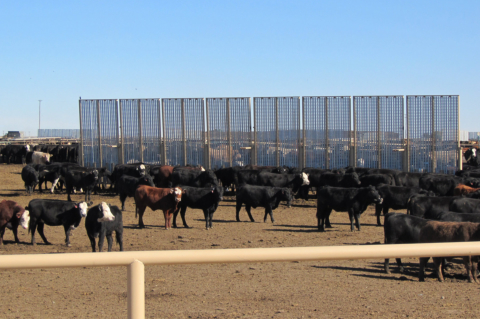

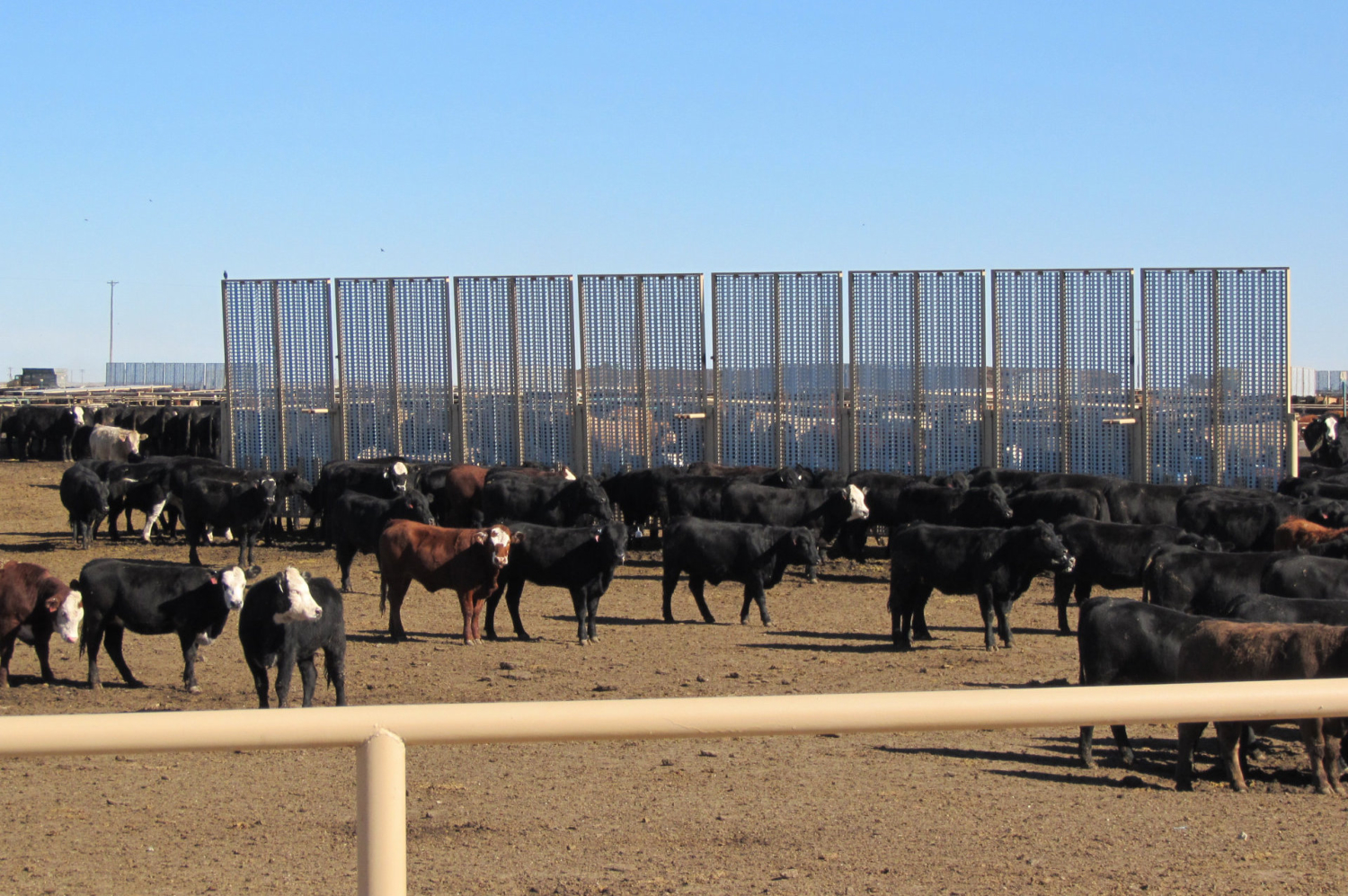

In the tests we’ve run, this panel stops over 95% of the wind velocity and snow does not swirl over the top like a solid windbreak. Cattle will not drift away from protection.
Heat Flows Up Through Holes Stops 79% of Sun
Stationary Windbreak panel....................... $ 640 00 Bare Post......................................................... $ 139 00 Post With Shade latch.................................. $ 190 00 Cost of 60’ Stationary Windbreak........... $ 6,580 00 8 Panels in a 60’ Section Posts are 4 1/2” O.D. with 1/4” Wall Set Up Instructions
The outside frame of these panels is made of 1 1/2” x 3:” x 14 gauge tube. The 21% perforated sheets are 20 gauge galvanized-punched full of 1 5/8” holes and corrugated to 3”. Weight per 12’ sheet is 54 lbs. - 7’ x 12’ complete panel weight is 225 lbs.

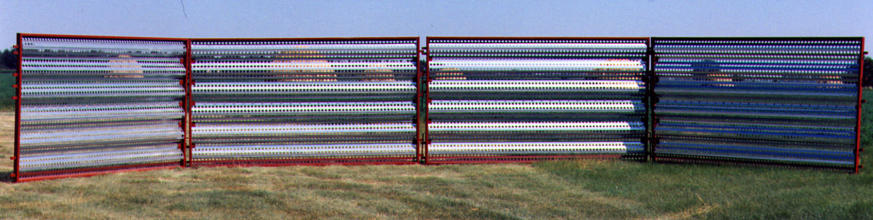

Portable Windbreak Panel........................................ $ 605 00 The Windbreak Panel will hook-up to the Daniels Livestock Buildings and all of our portable Livestock Panels. The Windbreak Panels can be set up in an open area or around a building for added protection.
Windbreak
© Daniels Manufacturing Co. 2015
Shop Building
Portable Windbreak Panel........ $ 605 00 The Windbreak Panel will hook-up to the Daniels Livestock Buildings and all of our portable Livestock Panels. The Windbreak Panels can be set up in an open area or around a building for added protection.
Windbreaks
Windbreak for Shade
From Windbreak...
- In Just 5 Minutes - One Person - No Tools - No Bolts
To Shade!
In the tests we’ve run, this panel stops over 95% of the wind velocity and snow does not swirl over the top like a solid windbreak. Cattle will not drift away from protection.
Heat Flows Up Through Holes Stops 79% of Sun
Stationary Windbreak panel....................... $ 640 00 Bare Post......................................................... $ 139 00 Post With Shade latch.................................. $ 190 00 Cost of 60’ Stationary Windbreak........... $ 6,580 00 8 Panels in a 60’ Section Posts are 4 1/2” O.D. with 1/4” Wall Set Up Instructions
The outside frame of these panels is made of 1 1/2” x 3:” x 14 gauge tube. The 21% perforated sheets are 20 gauge galvanized-punched full of 1 5/8” holes and corrugated to 3”. Weight per 12’ sheet is 54 lbs. - 7’ x 12’ complete panel weight is 225 lbs.
